Project Description
I. General Introduction

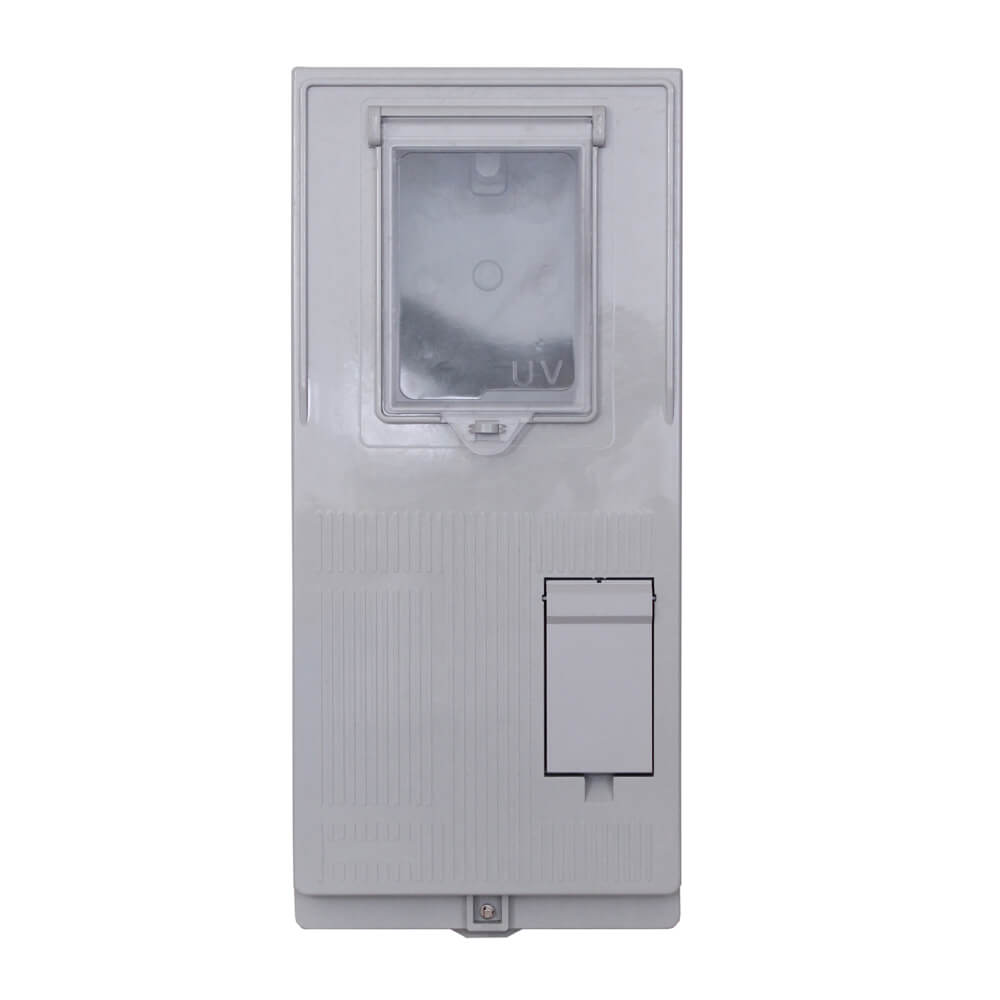

DTSY1598 three phase SMC prepaid meter box adopts fiber glass reinforced polyester material. Especially it customizes for installing one BS type three phase meter-position from anti-tamper and complying with IP54 protection. Additionally, it also can accommodate such as 1 pc 4P circuit breaker, 1 pc neutral and 3 pcs AD type fuse cartridges.
II. Technical Features
i. Made by hot compression molded production.
ii. Reach self-extinguishing at 960℃ and resistant to heat above 125℃ and ultra-violet rays.
iii. With transparent window.
iv. Screw is incorrodable tin-plated brass, tin-plated steel or stainless steel.
v. With circuit breaker accessing door.
vi. Meet standards of EDF HN 60 E-01, 02 and 03, EDF HN 62 S-15 and EDF HN 60 E-80.
vii. By wall or pole mounting mode.
viii. Sealed by triangle screw.
ix. High impact resistance (IK10) and high degree of protection IP54.
x. Used for three phase keypad prepaid meter.
Function&Feature
| Meter box is hot compression molded from fiber glass reinforced polyester. |
| The materials used are self-extinguishing at 960° C and resistant to heat at 125° C and ultraviolet rays. |
| It is equipped with a openable or lockable window to check the energy meter’s status. The window part is made of transparent polycarbonate, non-corrosive and indémontable from the outside. The mechanical protection index to be combined with this is IK10. |
| The equipment fixing inserts are made of incorrodable tin-plated brass, the screws in tin-plated steel or stainless steel. |
| The circuit breaker reset access hatch is made by injection without any metal parts. It is articulated in its upper part and guarantees the tightness of the whole thanks to its shape. |
| For protection against solid bodies and liquids, the degree of protection to be associated with these boxes is IP54. |
| These enclosures comply with EDF HN60 E-01, 02 and 03, EDF HN62 S–15 and EDF HN60 E-80 specifications. |
| Installation mode of the enclosures includes fixing on wall or pole by strap. |

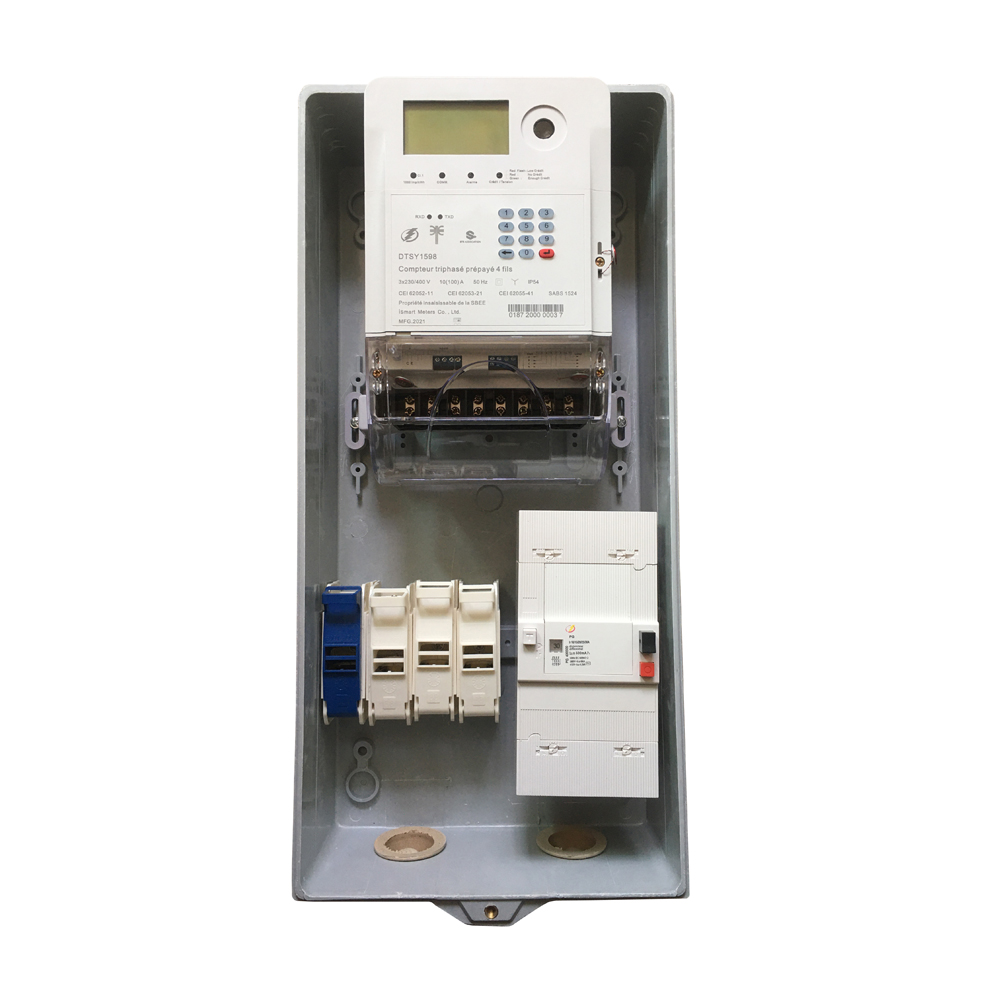

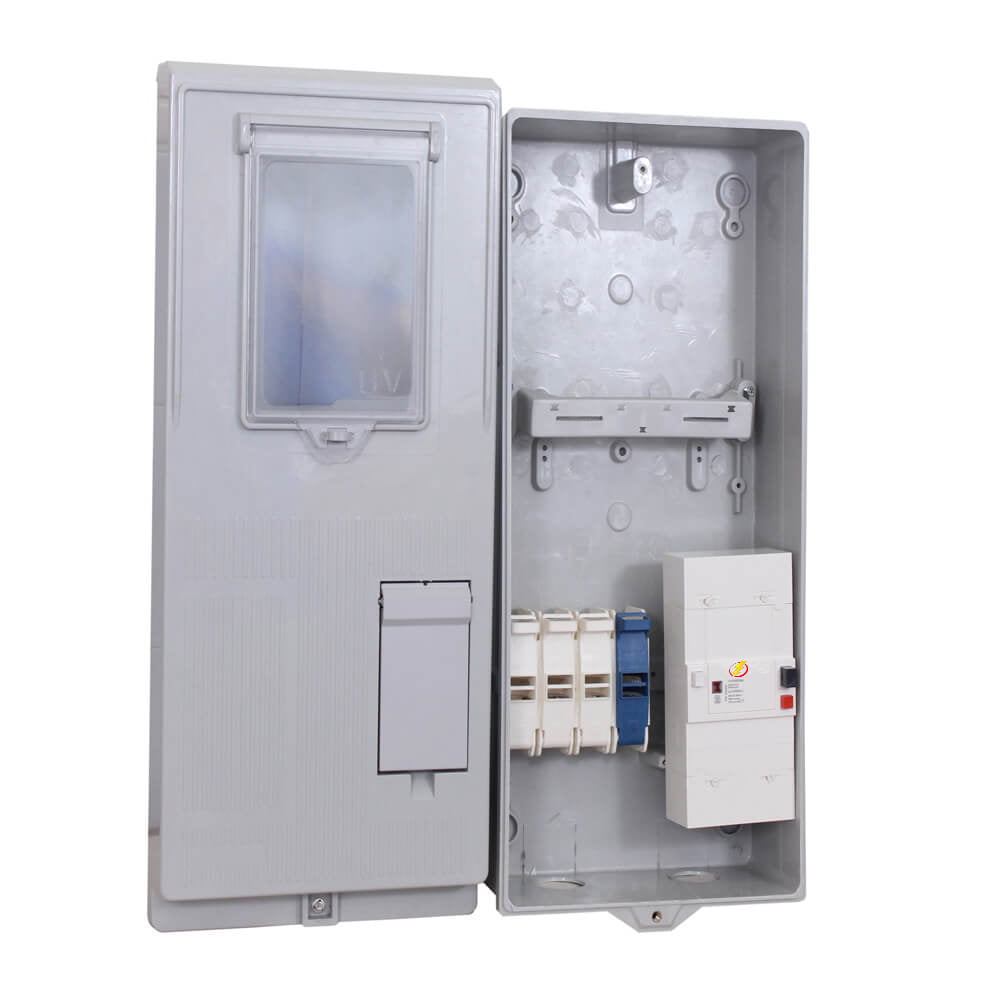

| With accessories&rack to fix various models of three phase prepayment energy meter and circuit breaker(3 points for fixing energy meter; 2 points for fixing circuit-breaker). |
Main Parameters
| Item | Description |
|---|---|
| Material | Fiber glass reinforced polyester |
| Open/close | A sealed triangle |
| Entries/exits | With cable gland, 4 inputs / outputs sections 70 mm ² |
| Capacity | Suitable for the material included; the grip to the pole should be as small as possible to prevent tearing. |
| Degree of protection | IP54 |
| Accessoires | for fixing the counters and the modular distributor |
| Fastening system | 3 bosses for fixing counter; 2 bosses for circuit breaker mounting |
| Dimension | 635mm X 295mm X 180mm |
