Project Description
I. General Introduction

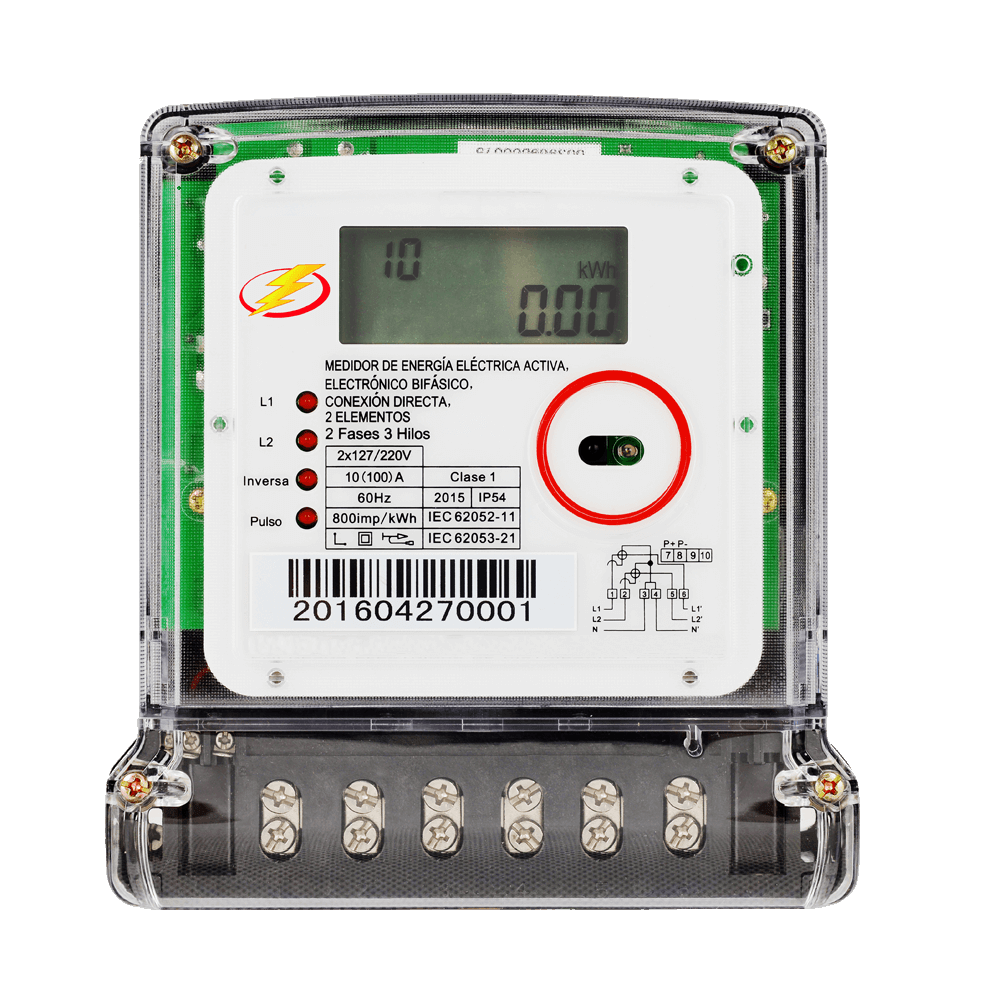

DSS1598 Smart Two Phase Three Wire Meter is R&D by our own, apply to measure the nominal voltage(127V) two-phase meter’s AC active power. With far-infrared communication port, there are high reliability, high precision and long life feature of the meter. This meter can be widely used in two-phase (AC) in city, village and factory. This meter uses high accurate measurement chip of the three-phase to realize the metering accuracy of the two-phase AC active power. MCU read the impulse number to calculate the energy, and save to the nonvolatile storage. It can read the meter through far-infrared. The built-in nonvolatile storage can make sure the data can save at least 10 years after the system out of electricity.
II. Technical Specification
1. Measures active energy precisely
2. LCD display
3. Stable measurement which maintains flat error linearity at 5%Ib to Imax
4. Wide working temperature range: -30℃ ~ +70℃
5. Ultrasonic welding sealing housing
6. Transparent top cover and terminal cover Optional communication port
Function&Feature
| Multi-tariff |
| LCD display |
| Auto scroll mode display |
| Screw/ultrasonic sealing |
| Long/short terminal cover |
| Display when power-off |
| Terminal cover opening detection |
| Reverse line detection |
| IEC62056-21 communication protocol |
Main Parameters
| Item | Description |
|---|---|
| Active energy | Class 1.0 (IEC62053-21) |
| Display | LCD or Register |
| Nominal voltage | 2×127/220V |
| Current | 5(80)A or 10(100)A |
| Frequency | 50Hz or 60Hz |
| Working voltage | 80% nominal voltage to 1.15 nominal voltage |
| Working temperature range | -25℃~+85℃ |
| Communication port | Optical port or RS485 |
| Protection class | IP54 |
| Installation type | BS |
| Life span | 10 years |
| Relative humidity | 0~95% |
