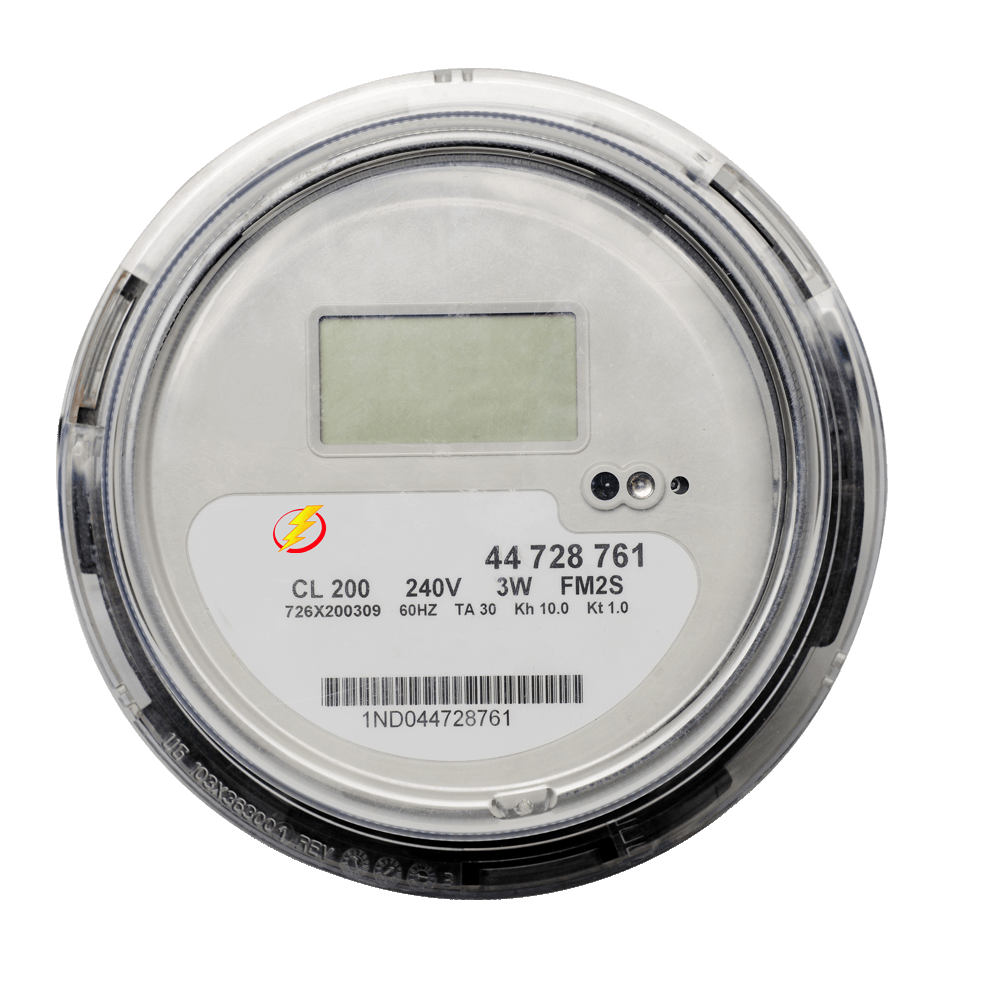

DDS1598 Single Phase ANSI Socket Meter

DDS1598 FM1S or FM2S single phase ANSI socket meter with RF or RS485

DDS1598 single phase ANSI socket meter is a solid-state residential electricity meter. It provides power utilities with unparalleled digital accuracy, reliability and serviceability in a cost-effective package. It complies with ANSI standards C12.1-2008 and C12.20-2010.

Furthermore, the high grade components of the meter offers unsurpassed accuracy and reliability. While its manufacture technology ensures precise measurement, advanced capabilities and an extended operating life. With solid, flame-retardant, aging proof material and offers ultrasonic welding mechanism for its housing. By its versatility in communication, it allows incorporation in the existing AMR and delivering advanced metering benefits.

Technical Parameters

Standards compliant: ANSI C12.1-2001;

Management quality standards: ISO9001-2008;

Rated voltage: 1P2W: 120V，operating voltage range（70%～115%）Un；1P3W: 240V，operating voltage range（70%～115%）Un；

Operating voltage range: 70%Un-115%Un;

Rated current: 1P2W：15 (100)  A；     1P3W：30（200）A；

Pulse constant: 1P2W： 1000 imp/kWh; 1P3W： 1000 imp/kWh

Rated frequency: 60Hz±2%;

Measurement accuracy: Class 1.0;

Starting current：≤0.004Ib;

Power consumption：

Voltage circuit: ≤1.0W or 10VA,

Current circuit: ≤4VA;

Working temperature range：-30℃~+70℃;

Storage temperature range：-40℃~+75℃;

Communication mode：Far infrared communication port;

Far infrared communication port：1200bps，Half duplex;

Display：LCD, kWh is displayed in 6 integers;

Battery：3.6 VDC, 1.2Ah Non-rechargeable green battery.

Weight：

1P2W: 0.7kg (0.834kg with internal carton box)

1P3W: 0.8kg (0.94kg with internal carton box)
